Products >> Sensor-Instruments >> Control-Counting Sensors

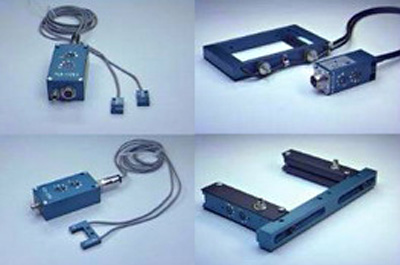

The sensors of FLB Series detect parts starting from a size of 0.2 mm with a switching frequency of 1 kHz. An additional analog output (0...+10V) offers application possibilities in the field of measuring technology. With the electronic control unit FLB-CON2 an operator-friendly parameterisation on a PC under Windows? is ensured.

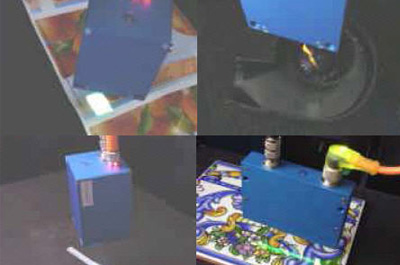

Luminescence sensors are applied where adhesives, sealing compounds, special liquids, or other materials are combined with fluorescent substances. When illuminated with UV-light, these fluorescent additives will light up and emit light in the visible spectrum (e.g. red, orange, yellow, green, blue). In the LUMI Series sensors, modulated UV light is employed to suppress outside light sensitivity. The special optical arrangement of optical emitter and receiver (radial or linear emitter) allows operating distances of up to 100 mm. The sensors are equipped with an RS232 interface,

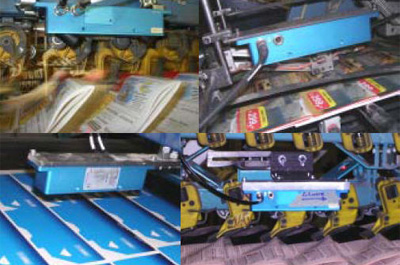

LCC Series laser copy counters primarily are designed for detecting and counting magazines or single sheets in imbricated arrangement. In the optimal operating range they detect sheet edges of a thickness of typ. 50 ?m. The sensors of Series LCC are characterised by their reliable function, their ease of operation, and their sturdy mechanical construction. Further characterising features of these sensors are their high scanning frequency and their ability to adjust themselves to differently bright and dark, or slow and fast moving parts.

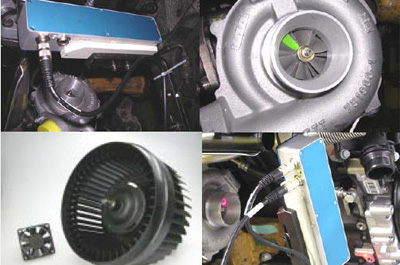

The LBC Series impeller vane counters are primarily used for detecting and counting the vanes or blades of turbo- chargers and fans. The high scanning frequency and the standardized data evaluation of the laser sensor allow its application with objects of different color and speeds of up to 30000 rpm. The visible laser spot and the automatic laser power correction feature facilitate sensor alignment to the respective objects. An analog signal (0...+10V) and a digital signal (0V/+24V) are available as outputs.

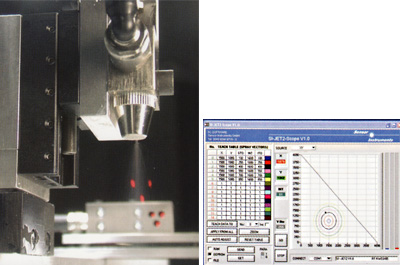

By means of three laser light barriers integrated in a transmitter and receiver unit the SI-JET laser spray jet control system checks the density, symmetry, and cone angle of the spray jet. Choked or incorrectly set nozzles can thus be detected in time. A comprehensive software (SPRAYER-Scope) allows parameterization of the system via Windows?. By using the supplied adjustment facility the laser transmitter unit can be easily and comfortably aligned with the receiver unit.
The sensors of RLS-GD series are used for online measurement of gloss degree. In the production of plastic sheets (design sheets, wall coverings, floor coverings, table coatings, foam sheets, and coated carrier materials for the furniture industry, automobile industry, fashion industry, or construction industry) and ceramic parts (ceramic tiles and plates for wall and floor) 100% quality inspection of the optically visible surface has become an ever more frequent requirement.
