AX/S Series

• Measurement Range (mm): ?1 - ?10
• Accuracy (% of reading): 0.5 - 0.7
• Tip Force (N): 0.7 ? 20%

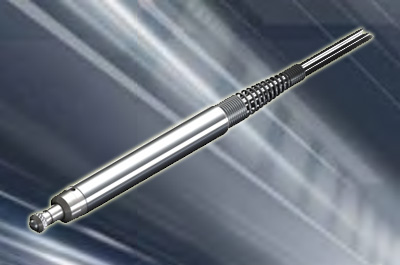

AT/S Series

• Measurement Range (mm): ?1 - ?10
• Accuracy (% of reading): 0.5 - 0.7
• Tip Force (N): 0.3 ? 20%

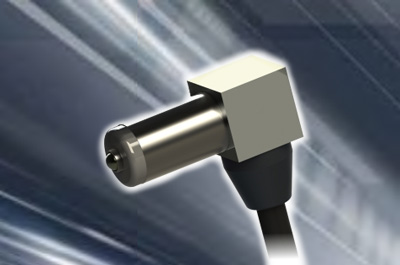

AX/S Series Special Sensor

• Measurement Range (mm): 0.25 - 1.0
• Accuracy (% of reading): 0.5
• Tip Force (N): 0.7 ? 20%

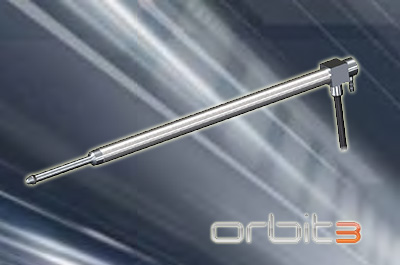

DT/30 Long Stroke Probe

The DT/30 range of Pneumatic Push Probes is designed for use in automatic gauging applications where extra mechanical travel eliminates the need for pneumatic actuators. These probes are to be used where a parts cavity or hole depth needs to be measured. The shaft retracts up to 31 mm allowing simple automatic loading of the fixture. The DT/30 is available with 5 and 10 mm measurement range.

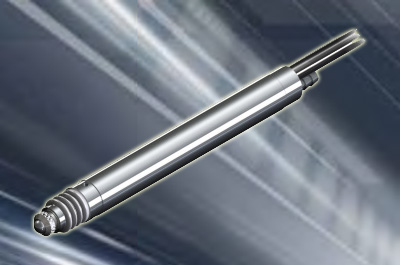

AX/P Series

• Measurement Range (mm): ?1 - ?10
• Accuracy (% of reading): 0.5 - 0.7
• Tip Force (N): 0.7 - 0.8

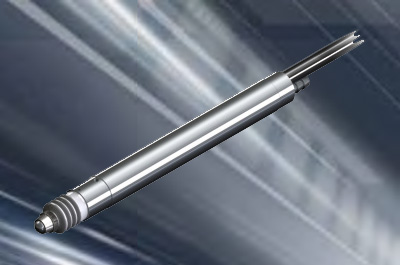

AJ/P Series

• Measurement Range (mm): ?1 - ?10
• Accuracy (% of reading): 0.5 - 0.7
• Tip Force (N): 0.85 - 1.0

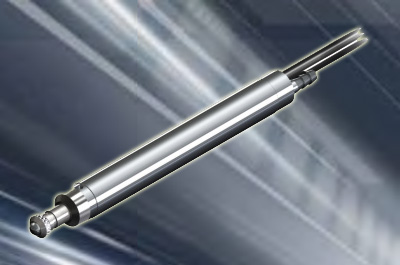

AT/P Series

• Measurement Range (mm): ?1 - ?10
• Accuracy (% of reading): 0.5 - 0.7
• Tip Force (N): 0.18 @ 0.3 bar

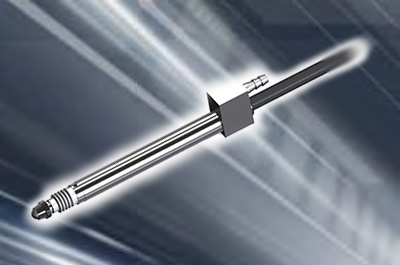

D6J2P Series

• Thin Probe Diameter 6mm
• Measuring Range (mm) 2
• Tip Force (N): 0.07

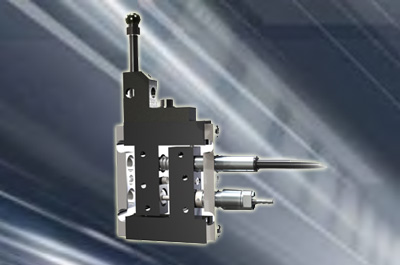

AU Series Flexure Gauge

• Measurement Range (mm): 2.0 - 10
• Pneumatic and Spring Push variants
• Tip Force (N): 1.5 ? 20%

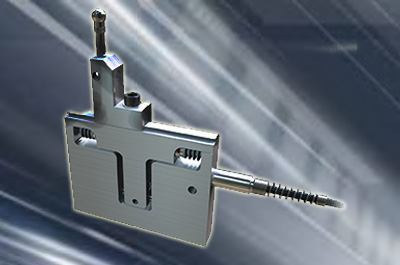

BG Series Block Gauge

• Measurement Range (mm): 1.0 - 2.0
• Pneumatic and Spring Push variants
• Tip Force (N): 1.0 - 1.5 ? 20%

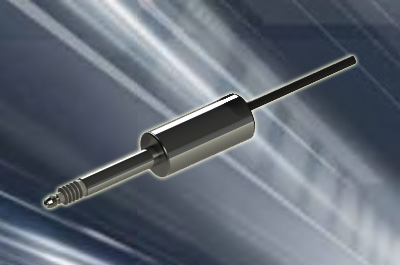

DG Series

• ?1, ?2.5, ?5 mm measurement range
• Linearity 0.3%
• DC/DC LVDT Sensor
• Precision Ball Bearing

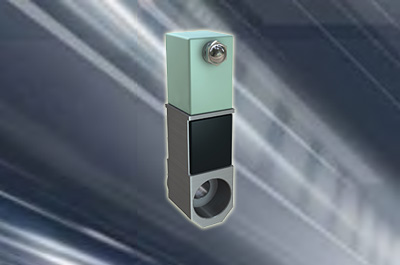

AM Series Mini Probe

• 0.5mm Total Measuring Range
• Excellent repeatability in both planes of operation
• Strong frame enables rotation in bores with key slot
• Tesa compatible version only
